No Overlaps – The source of the Urban Heat Island

October 19, 2020 Off By EliRabett

Yesterday, Eli showed that surface warming depends on the average distance that an IR photon will travel before being absorbed by a greenhouse gas molecule. Today, some riffs.

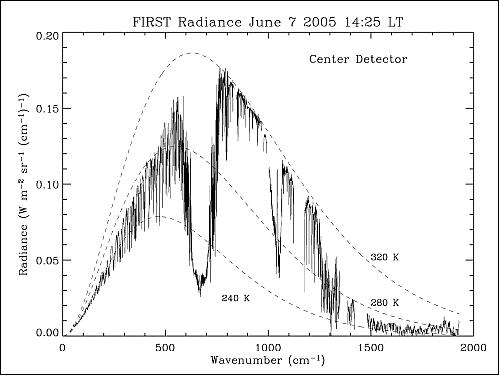

Looking at a high resolution IR spectrum looking down from more than 30 km

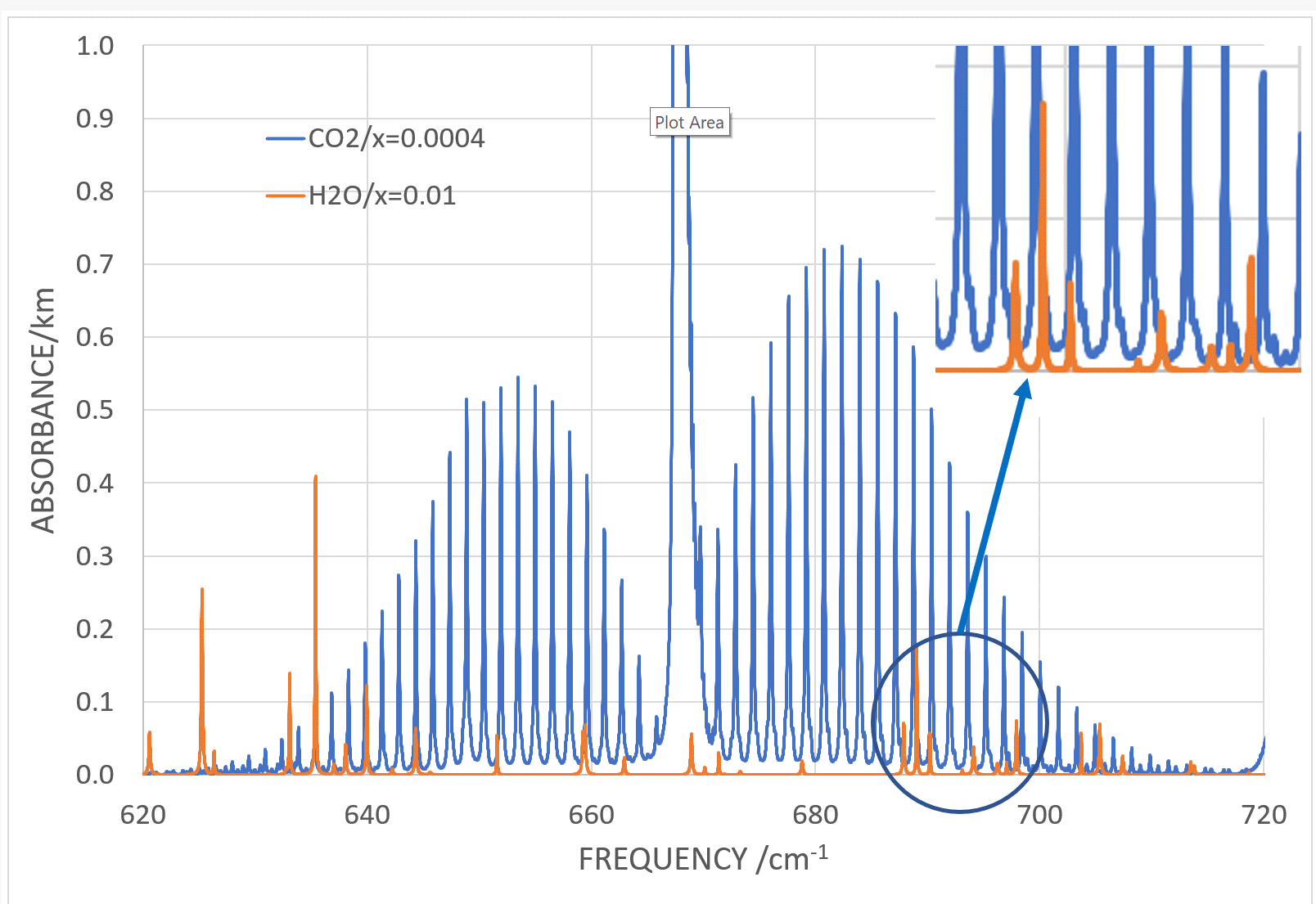

The large bite into the blackbody emission at ground level (320 K) in the region of the CO2 bend at 640 cm⁻¹ is obvious, but the question is how much of that comes from CO2  and how much from H2O, in other words how much overlap. Well, let's look at the spectra from a 1m path in water vapor and  CO2 at atmospheric pressure and concentrations using high resolution


and it is clear that there is little overlap and most of the concentration is from  CO2. If you add up the absorbance between 620 and 720 cm⁻¹ the total from  COwould be 30 times that from H2O.

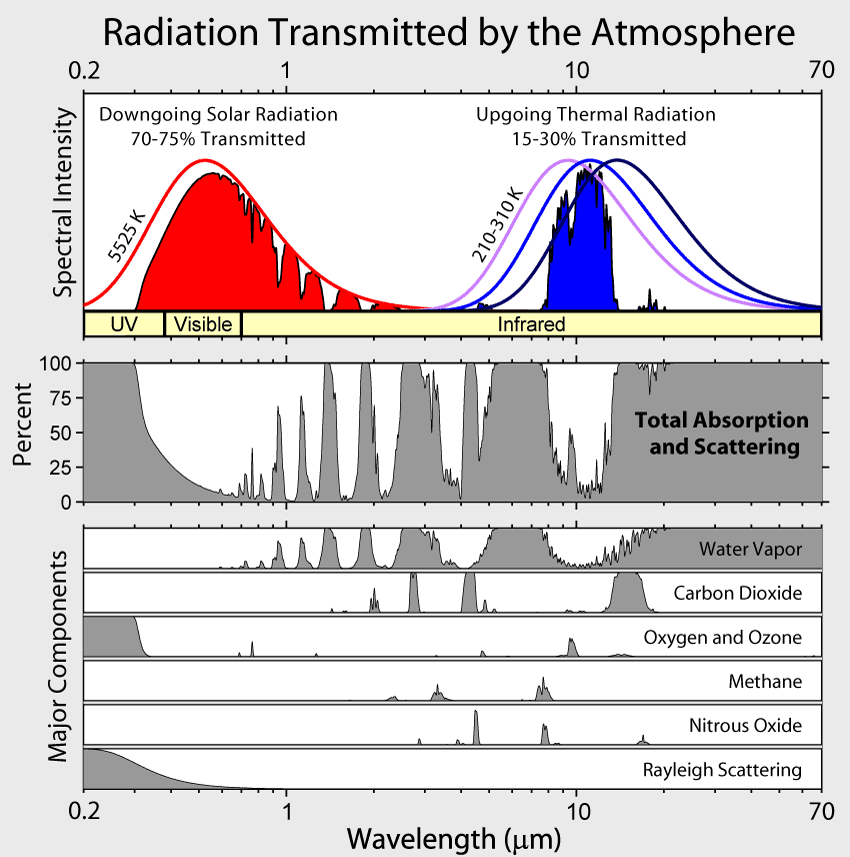

If you asked how much of the IR would be absorbed in a 10 km path (the troposphere) by water vapor in this spectral region the answer would be pretty much all of it. That's what you get from the usual figure that is shown in such discussions elsewhere, or at least that there is a great amount of overlap


But that's the wrong question. The right one is, of the IR emitted from the surface, how much of it is absorbed by CO2 and how much by H2O, and there, the answer is CO2 absorbs essentially all of it in the first few meters so very little is left for water vapor to absorb.

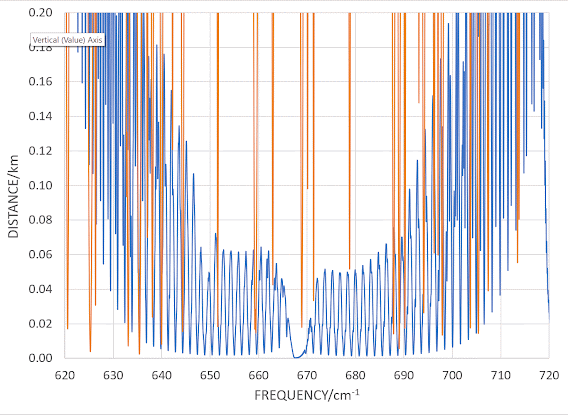

Bunnies can ask, well, what is the distance at which the absorbance is 1 (~2/3 of the IR, or to be more exact 63%, is absorbed). At high resolution this is pretty confusing to look at

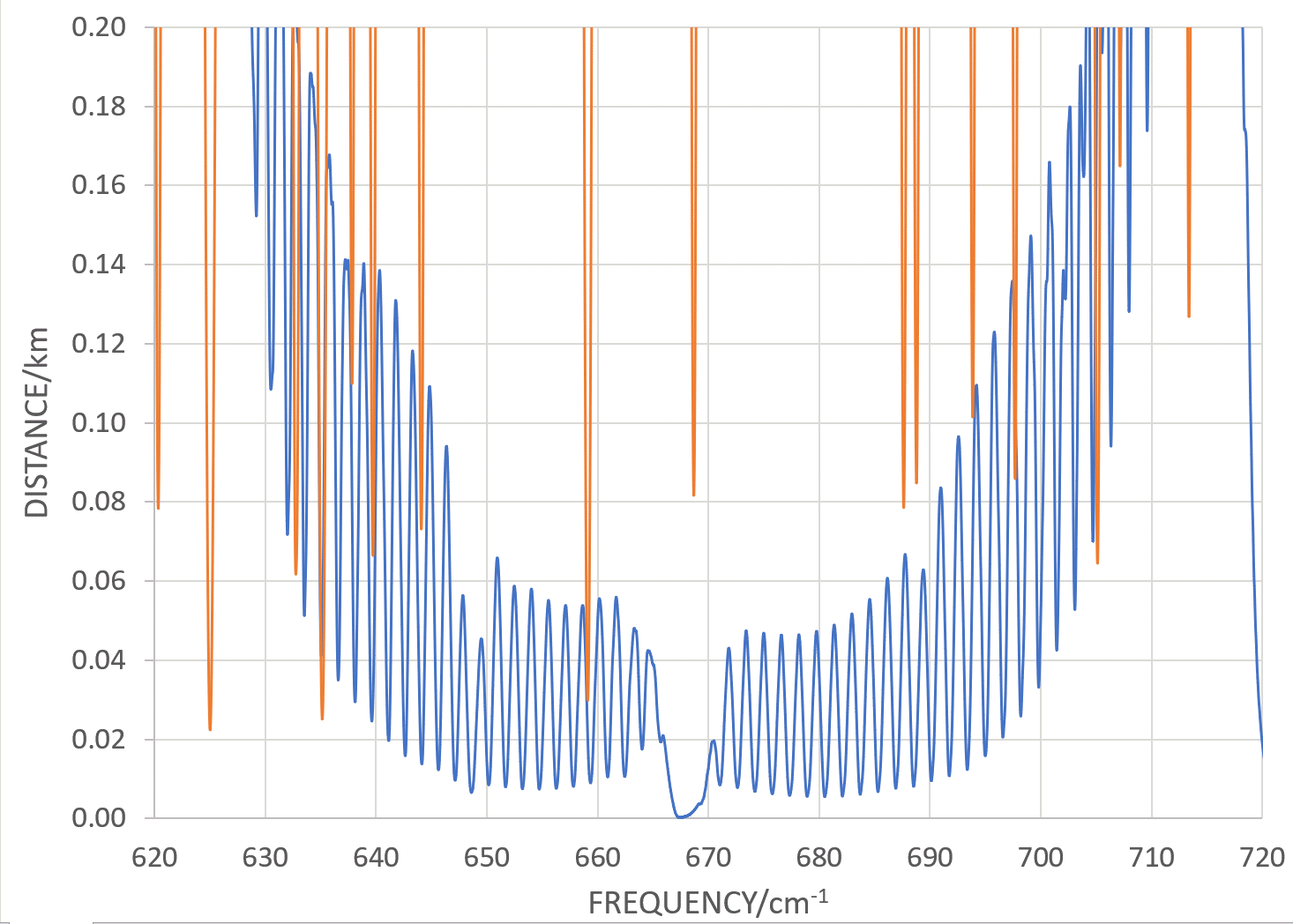

but it does look like very little gets more than 30 m or so. By averaging over 1 cm⁻¹ the picture becomes clearer

So, remembering yesterday's lesson, in this region of the spectrum, essentially all of the surface warming is controlled by CO2 back radiation and none of it by water vapor (there is, of course some convection and condensation, but radiative emission and absorption are the primary effect.

By implication this means that a significant part of the urban heat effect is driven by CO2  backradiation.

Perhaps tomorrow the rest of the IR spectrum and the minor greenhouse gases.
