On Edith Foote’s Experiment

There is a sort of  simmering discussion on Twitter and Facebook whether Edith Foote found the basis of the greenhouse effect before John Tyndall.  Eli is here to tell you what was done.  The TL:DR is no, she did not.

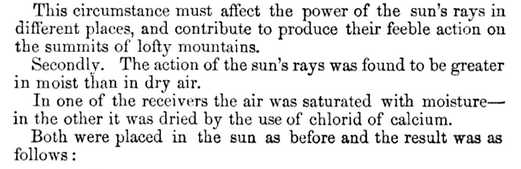

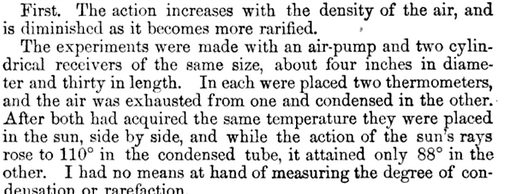

Her report can be found on the net in as a Google book,


Katherine Hayhoe describes it this way

In 1856, Mrs. Eunice Foote presented the results of a simple experiment at the annual meeting of the AAAS - The American Association for the Advancement of Science.

She filled up glass jars with different types of gases, including water vapour and carbon dioxide, and put them out in the sun. She then measured how much each jar heated up.

In her own words, "the highest effect I have found to be in carbonic acid gas" - that's what they used to call carbon dioxide back then.

She went on to say, "an atmosphere of that gas would give our earth a high temperature; and if as some suppose, at one period of its history the air had mixed with it a larger proportion than at present, an increased temperature from its own action must necessarily have resulted" - in other words, if there were more carbon dioxide in the atmosphere, then it would trap more heat, and the earth would be warmer.

When Eunice did her experiment, average carbon dioxide levels were about 290 parts per million in the atmosphere. She probably never dreamed that by 2016, they'd be over 400 parts per million.

Next year, I'm attending the annual meeting of the American Association for the Advancement of Science. There will be plenty of talk about the latest, cutting-edge research. But the coolest thing is this: that the basic science connecting carbon dioxide to a warming planet is 160 years

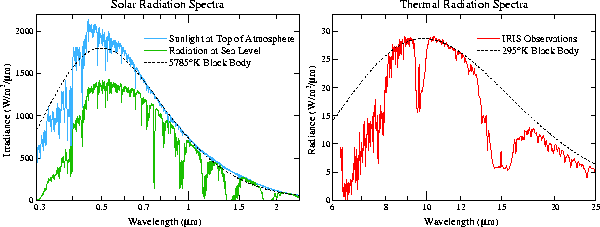

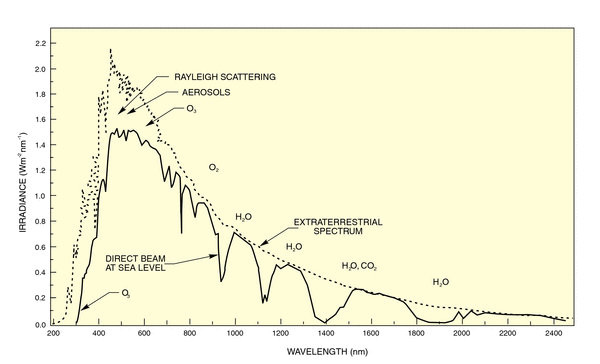

Eli's analysis of Foote's experiment and observations rests on three platforms.  First the observation of the solar spectrum at the surface of the Earth
The absorption of water vapor and CO2 in this spectrum are what are called combination and overtone absorption bands where there is a change of multiple vibrational quantum numbers as a result of absorbing  visible (380 - 800 nm) or NIR (near IR > 800 nm) photons.  For example if the three vibrational modes ν1, the symmetric stretch, ν2,the bend, and ν3, the asymmetric stretch are (0,0,0) in the ground state, a transition to (0,2,0) would be an overtone and to (1,0,1) a combination band.  As a general rule overtones and combination bands are about a factor of 100 to 10000 weaker than single quantum transitions.

Readers of Rabett Run also know that there is very little flux in the solar spectrum in the IR, particularly where the CO2 bending mode is active


The bunnies need one more piece of information, the transmission of glass
